Parts · PRT-11
SUNNY Elevator Parts
Catalogue-backed machines, fixtures, doors, guides, buffers and cabin finishes.
In short
SUNNY elevator parts include traction machines, passenger fixtures, door systems, guides, safety components, buffers and cabin designs. Liftech Global can evaluate and provide these parts in Pakistan after checking the exact model, dimensions and installation requirements. The photographs and stated ratings below are sourced from the supplied 2026 SUNNY components catalogue.
Engineering overview
Shanghai Sunny Elevator Co., Ltd. is identified on the official elevator-component.com website and the supplied SUNNY catalogue. This page distinguishes SUNNY-labelled products from other manufacturers also illustrated in the catalogue.
Catalogue ratings are selection references, not a blanket approval for every elevator. Verify the current datasheet, model nameplate, safety documentation and site requirements before ordering. Availability and delivery times are confirmed per quotation.
SUNNY · 2026 catalogues
SUNNY elevator products & parts in Pakistan
Liftech Global can evaluate and provide SUNNY equipment and parts for Karachi, Lahore and Islamabad projects. Exact-model compatibility, documentation, availability and pricing are confirmed before supply.
Types & variants
SUNNY SN-TMS2TO traction machine
Rated load 320–630 kg; speed 0.4–1.75 m/s; 320 mm sheave; 220/380 V; 2:1 roping; maximum static load 2,000 kg; DC110 V brake. Source: components PDF page 13.
SUNNY SN-TMS3TO traction machine
Rated load 450–1,150 kg; speed 0.5–1.75 m/s; 400 mm sheave; 220/380 V; 2:1 roping; maximum static load 3,000 kg; DC110 V brake. Source: components PDF page 13.
SUNNY SN-TMS6TO traction machine
Rated load 1,250–2,000 kg; speed 1.0–3.5 m/s; 450 mm sheave; 220/380 V; 2:1 roping; maximum static load 7,000 kg; DC110 V brake. Source: components PDF page 13.
SUNNY SN-TMS320 traction machine
Rated load 260–630 kg; speed 0.3–1.0 m/s; 200 mm sheave; 220/380 V; 2:1 roping; maximum static load 3,000 kg; DC110 V brake. Model number is not the sheave diameter. Source: components PDF page 13.
SUNNY SN-PB32 elevator push button
36 × 36 × 19 mm; zinc-alloy frame and stainless plate; tact switch; front-embedded mounting with rear screw fixing. Catalogue illumination options: red, blue, orange, green and white. Source: components PDF page 6.
SUNNY SN-PB35 elevator push button
42 mm diameter × 13 mm; zinc-alloy frame and stainless plate; tact switch; front-embedded mounting with rear screw fixing. Confirm button symbol, illumination and connector when ordering. Source: components PDF page 6.

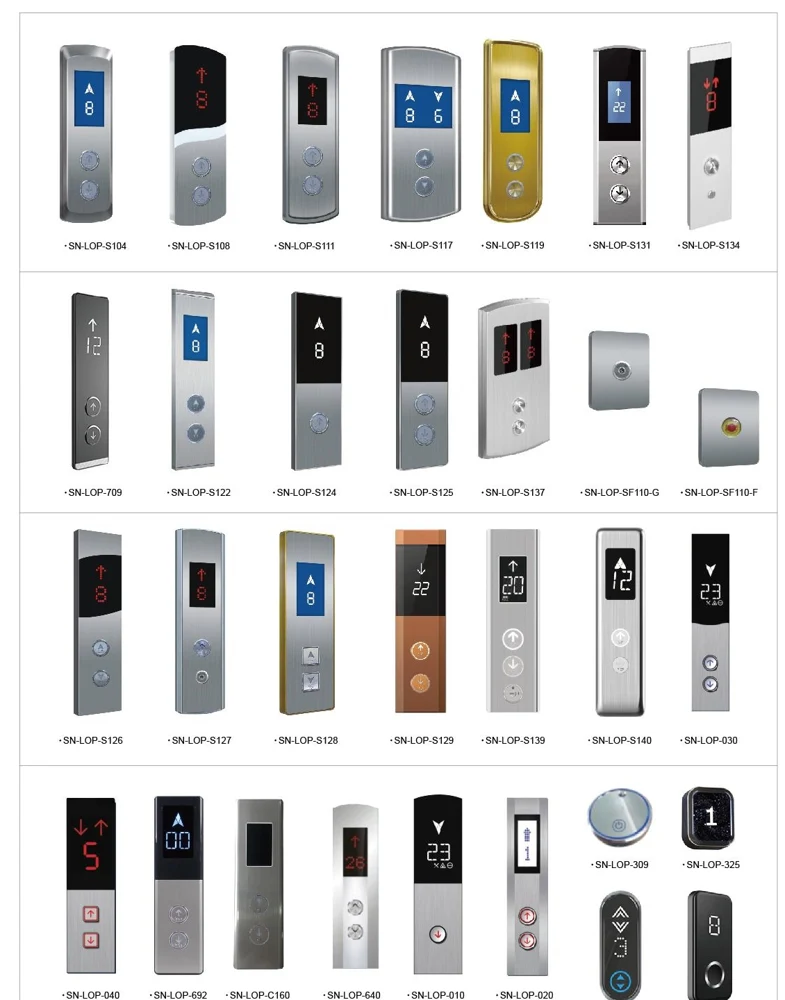

SUNNY landing operating panel range
Catalogue LOP styles include SN-LOP-S104 and SN-LOP-S108, with slim and box-type designs. Select panel dimensions, call buttons, display and controller interface from the approved drawing. Source: components PDF page 8.

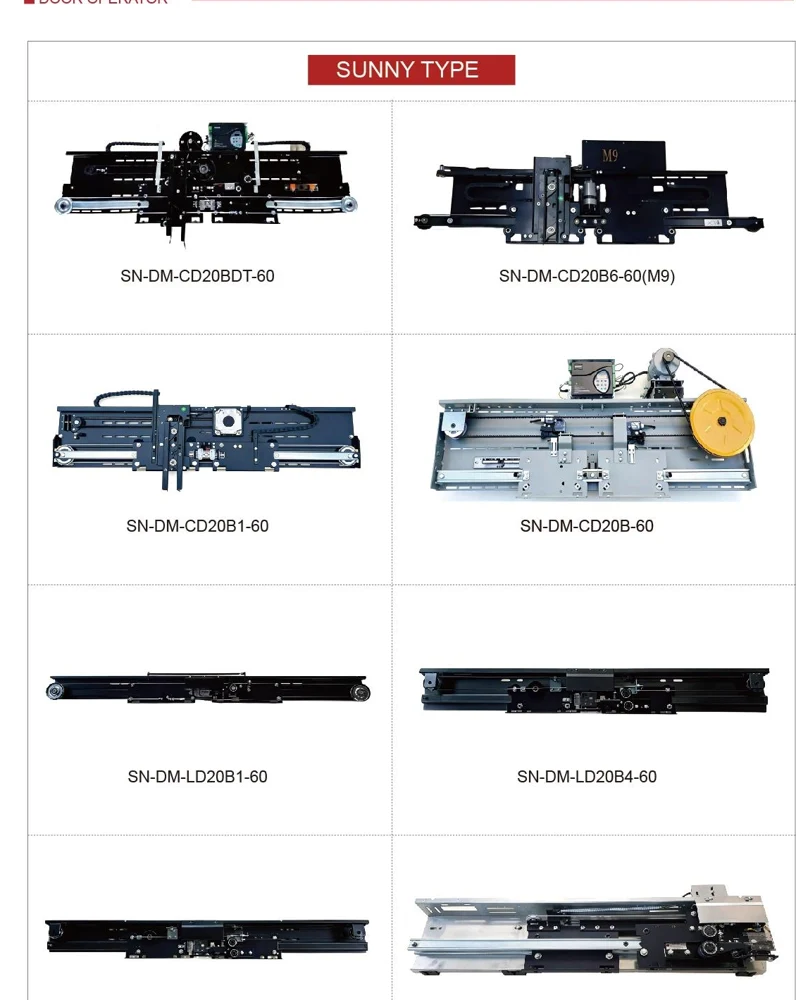

SUNNY door operator range
SUNNY-type operator assemblies include SN-DM-CD20BDT-60 and SN-DM-CD20B1-60. Match clear opening, opening direction, header mounting, coupler and electrical interface before replacement. Source: components PDF page 16.

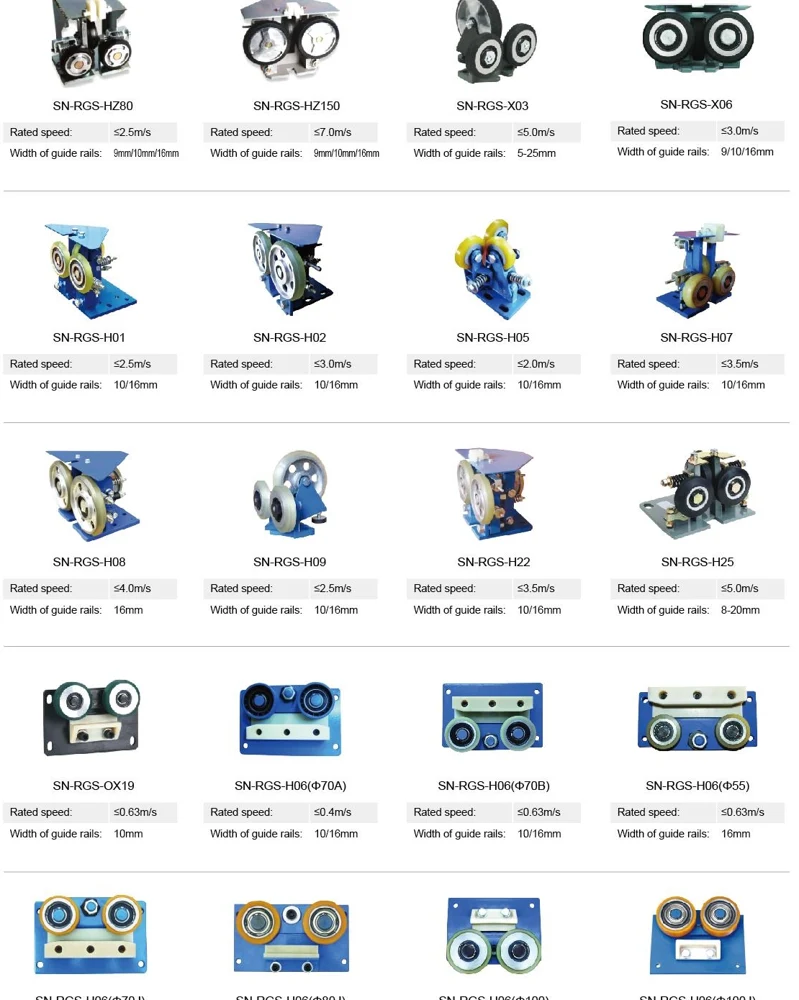

SUNNY roller guide shoe range
Illustrated range includes SN-RGS-HZ80, SN-RGS-HZ150 and SN-RGS-H01. Rail head width and operating speed vary by model; confirm the exact model and rail profile before supply. Source: components PDF page 20.

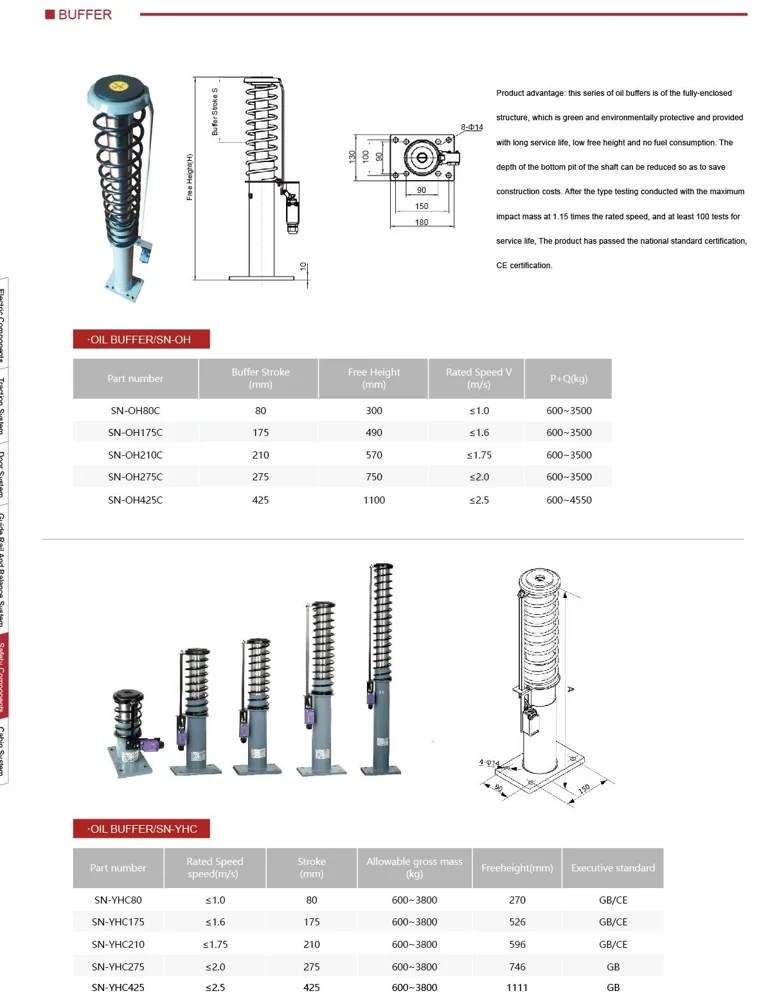

SUNNY SN-OH / SN-YHC oil buffers
SN-OH80C: 80 mm stroke, 300 mm free height, rated speed ≤1.0 m/s and 600–3,500 kg catalogue load range. Other strokes and speeds are model-specific; verify the safety certificate and total impacting mass. Source: components PDF page 24.

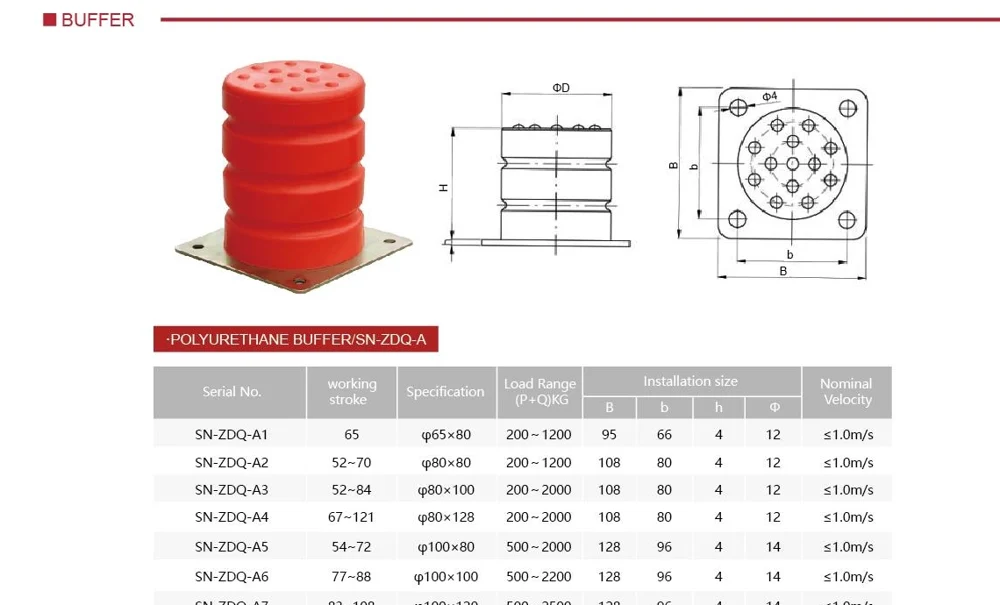

SUNNY SN-ZDQ-A polyurethane buffers
SN-ZDQ-A1: 65 mm working stroke, Ø65 × 80 mm specification, 200–1,200 kg catalogue load range and nominal speed ≤1.0 m/s. Installation dimensions and capacity vary across the series. Source: components PDF page 24.

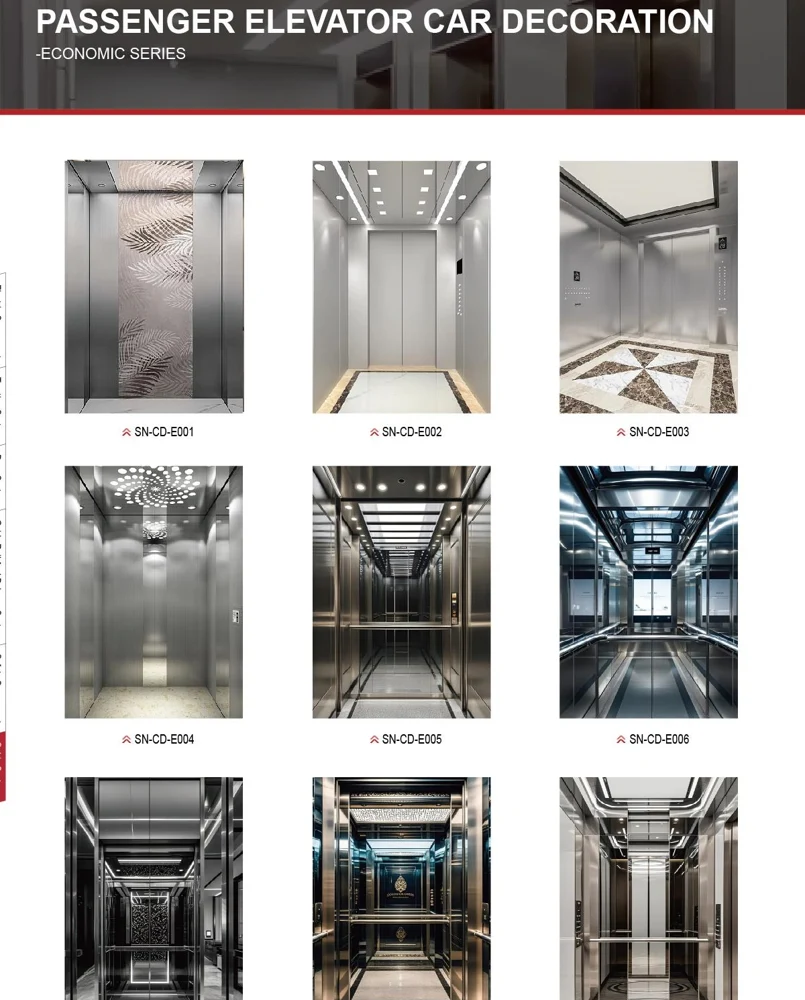

SUNNY passenger cabin decoration range
Actual catalogue cabin interiors with varied wall, ceiling and floor designs. Finish selection must be checked against cabin dimensions, car weight, accessibility and the approved equipment specification. Source: components PDF page 26.

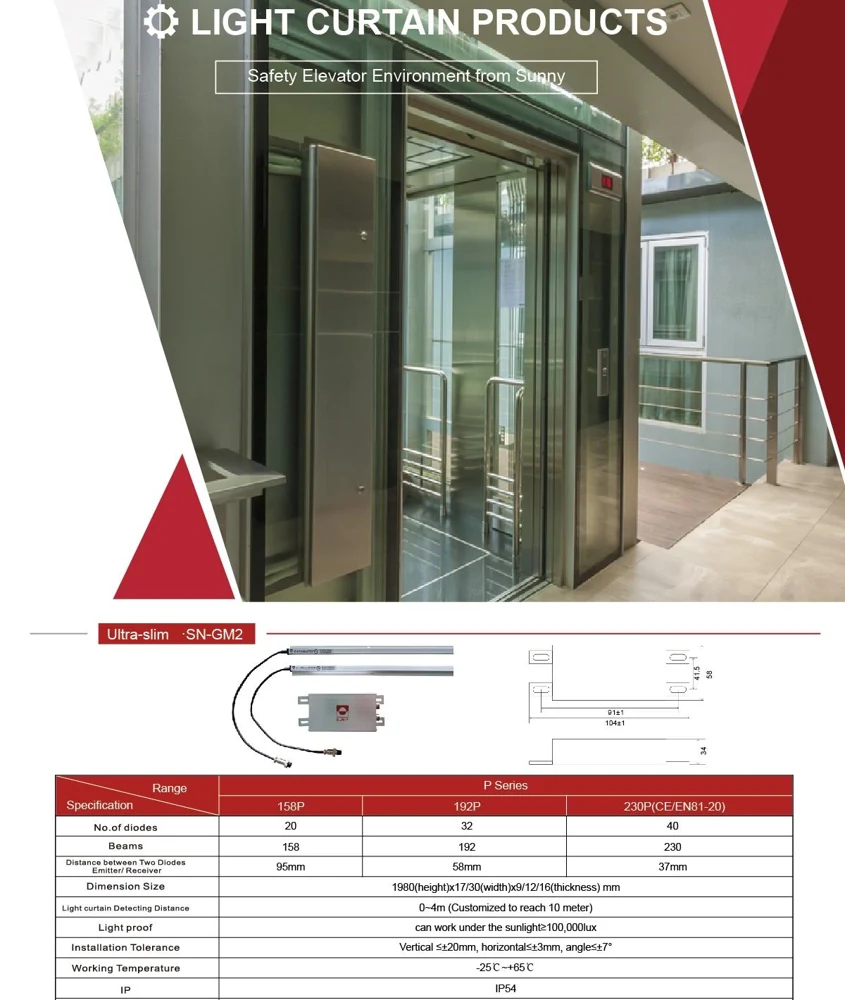

SUNNY elevator light curtain range
Catalogue door-protection products include folding SN-GM and 2-in-1 light-curtain concepts. Confirm detection geometry, supply, output type and installation arrangement for the specific door system. Source: components PDF page 4.
Technical specifications
| Source | User-supplied 2026 SUNNY Elevator Components PDF, 33 pages |
|---|---|
| SN-TMS2TO load / speed | 320–630 kg / 0.4–1.75 m/s |
| SN-TMS3TO load / speed | 450–1,150 kg / 0.5–1.75 m/s |
| SN-TMS6TO load / speed | 1,250–2,000 kg / 1.0–3.5 m/s |
| Machine supply / suspension | 220/380 V / 2:1 for the illustrated SUNNY machine models |
| Ordering | Exact model, nameplate, dimensions, quantity and project location required |
Gallery
Where it is used
- Passenger elevator installation and modernization
- Door and fixture replacement after interface checks
- Guide and buffer replacement after safety assessment
- Cabin refurbishment with car-weight checks
