Product · LT-DW
Dumbwaiters
Service lifts · food & document transport · 50–300 kg
Engineered dumbwaiters for Pakistan's demanding built environment.

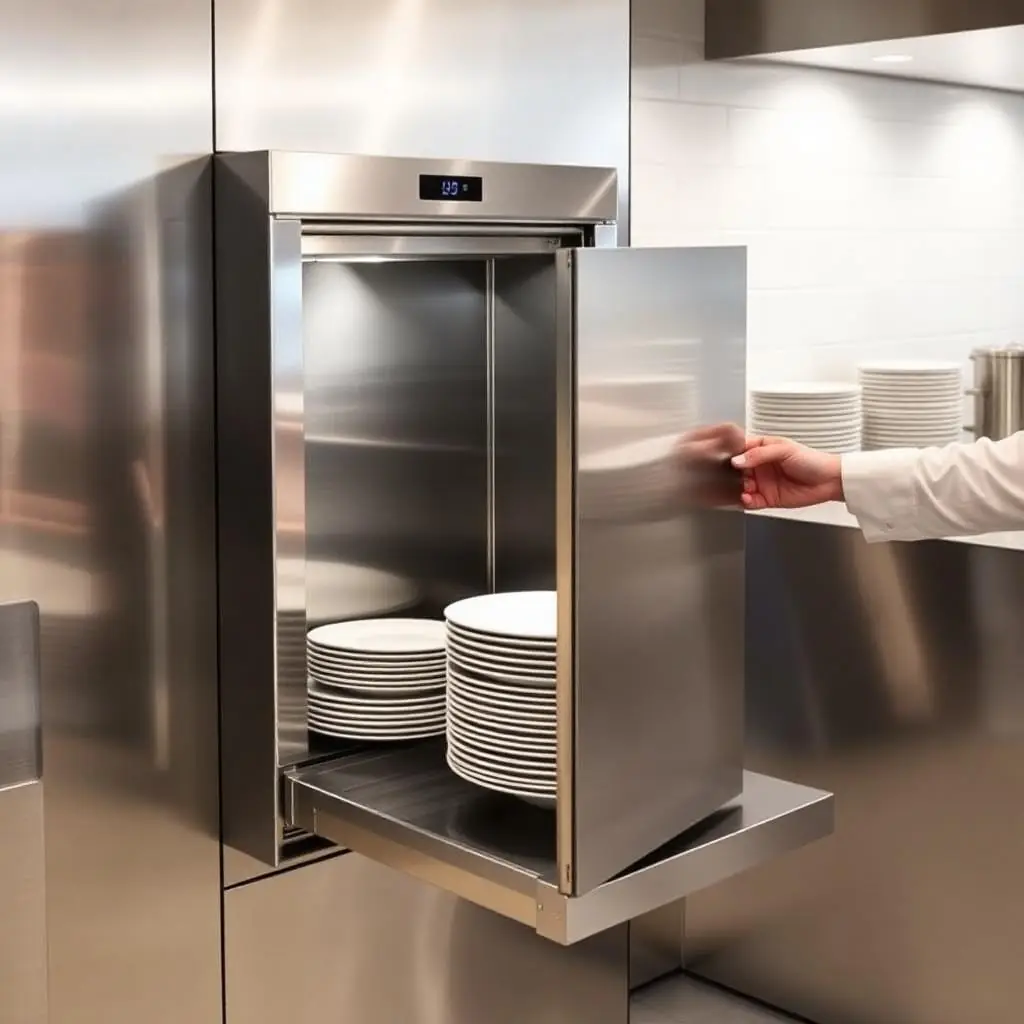

Liftech Global dumbwaiters are compact goods-only service lifts for restaurants, hotels, hospitals, libraries and multi-storey villas. A geared-machine drive with a compact cabin (up to 1000×1000×1200 mm) delivers reliable transfer of food trays, pharmacy carts, documents or linen between floors, at a fraction of the space and cost of a full cargo lift.

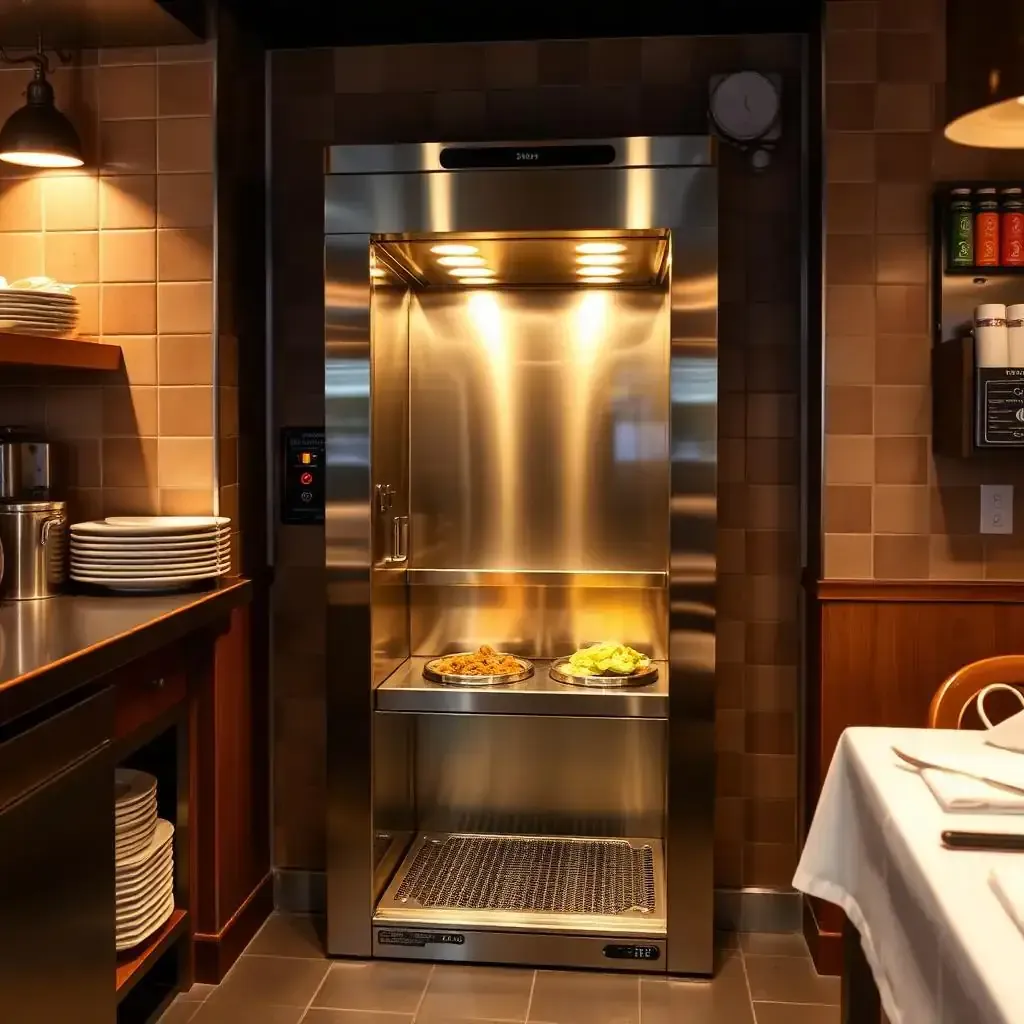

All units are engineered to EN 81-3 (electric service lifts) and can be supplied in floor-loading, counter-loading or wall-mounted configurations with SS 304 hygienic cabins for food-service applications.
Where it is deployed.
Why engineers choose this platform.
Compact
Shaft footprint as small as 700×700 mm.
Hygienic

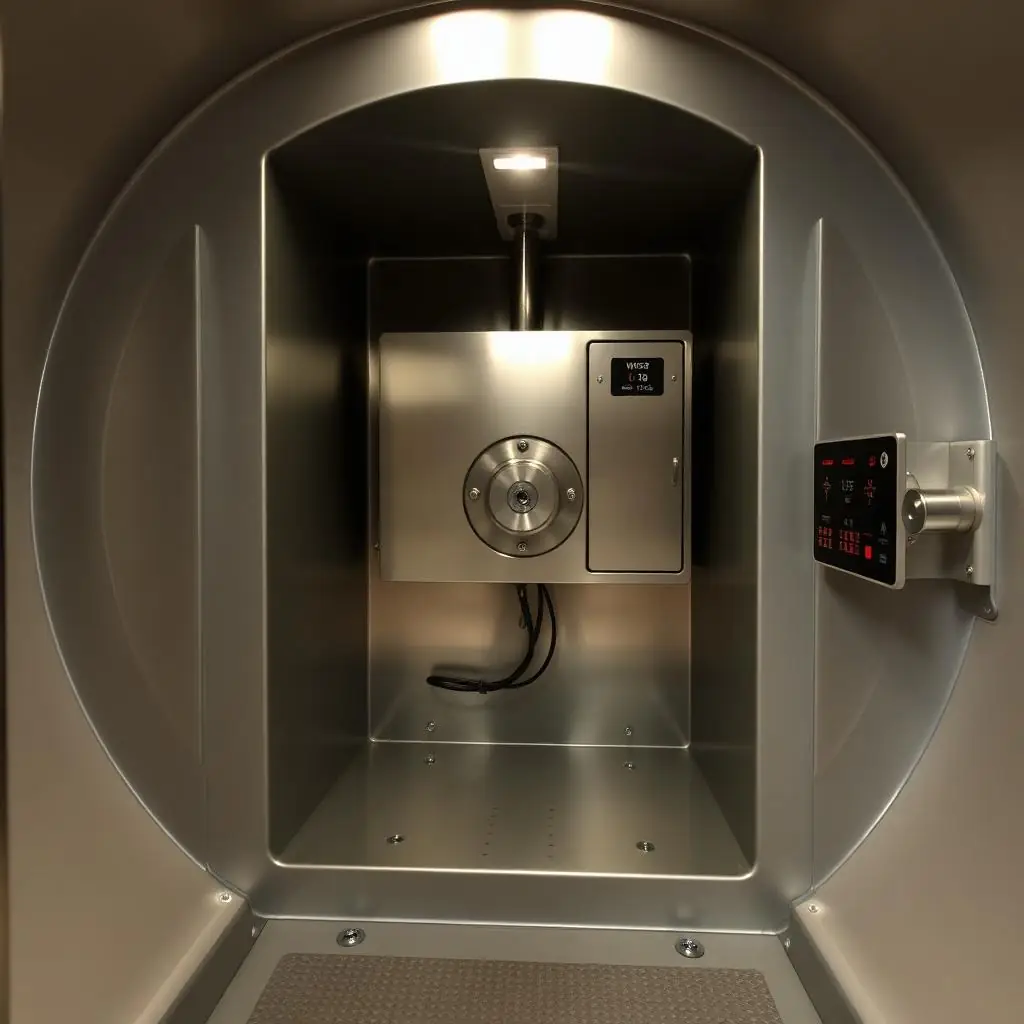

SS 304 hairline cabin for food-service compliance.
Cost-efficient
Capex 60–70% below a small cargo lift.
Fast payback
Cuts service-staff floor trips 40–60% in hotels & hospitals.
Verified engineering data.
| Parameter | Value |
|---|---|
| Rated load | 50 · 100 · 200 · 300 kg |
| Rated speed | 0.3 · 0.4 m/s |
| Travel / stops | Up to 20 m · up to 6 stops |
| Cabin size | 600×600×800 up to 1000×1000×1200 mm |
| Drive system | Geared machine with V-belt or roped 2:1 |
| Loading | Floor / counter / wall-mounted |
| Doors | Bi-parting or vertical two-speed, manual or auto |
Engineering highlights.
- SS 304 hairline cabin (food-service pack)
- Adjustable internal shelves for tray & bin loading
- Illuminated call & floor-arrival indication
- Compact geared machine at shaft head
Safety by design — every layer.
- Passenger-lockout — cabin sized to prevent human entry
- Slack-rope & broken-rope detection
- Door interlock on every landing
- Emergency stop & alarm at every landing
Codes we design & test to.
- EN 81-3 (electric service lifts)
- ISO 8100-1
- PEC electrical code
See it in the field.
Dumbwaiters: what engineers ask.
End-to-end lifecycle support.
Request a quotation for dumbwaiters.
Send us your building drawings and traffic profile — our engineering team will return a detailed specification and quotation within 48 hours.
