Product · LT-FRT
Freight Elevators
Reinforced sling · industrial duty · 2000–5000 kg
Engineered freight elevators for Pakistan's demanding built environment.
Liftech Global freight elevators are heavy-duty vertical transport systems built for textile mills, cold-storage warehouses, food-processing plants and multi-storey production facilities. A reinforced 4-rope sling, T125 machined guide rails and industrial-grade PMSM machine deliver a continuous S3 40% duty cycle for shift-based operations.
Door packages include bi-parting two-speed, vertical roller-shutter and manual swing configurations, all rated for the associated fire class (E60/E120 optional). Every unit is load-tested at handover in accordance with EN 81-50 §5.3 and shipped with a PEC-compliant electrical package.
Where it is deployed.
Why engineers choose this platform.
Heavy payloads
2000–5000 kg with forklift-ready floor and bump-rail protection.
Industrial duty
Continuous S3 40% duty and 180 starts/hour rating.
Load-tested
Full 125% load test at handover per EN 81-50 §5.3.
Fire-rated doors
E60 / E120 fire-rated shaft doors available.
Verified engineering data.
| Parameter | Value |
|---|---|
| Rated load | 2000 · 3000 · 4000 · 5000 kg |
| Rated speed | 0.25 · 0.4 · 0.5 · 0.63 m/s |
| Travel / stops | Up to 40 m · up to 12 stops |
| Drive system | PMSM gearless or Montanari geared 2:1 |
| Guide rails | T89 / T125 machined |
| Suspension | 8×19 Seale Ø13 mm, 4-rope minimum |

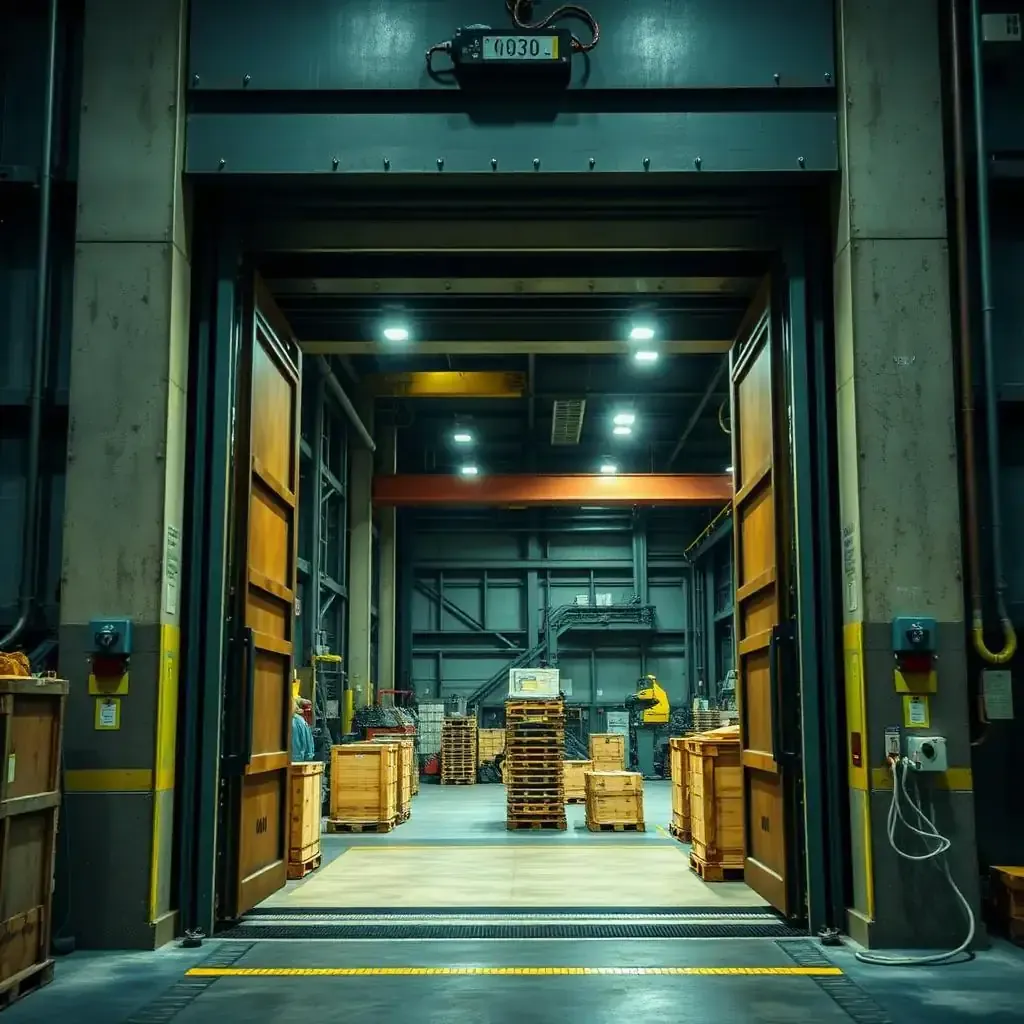

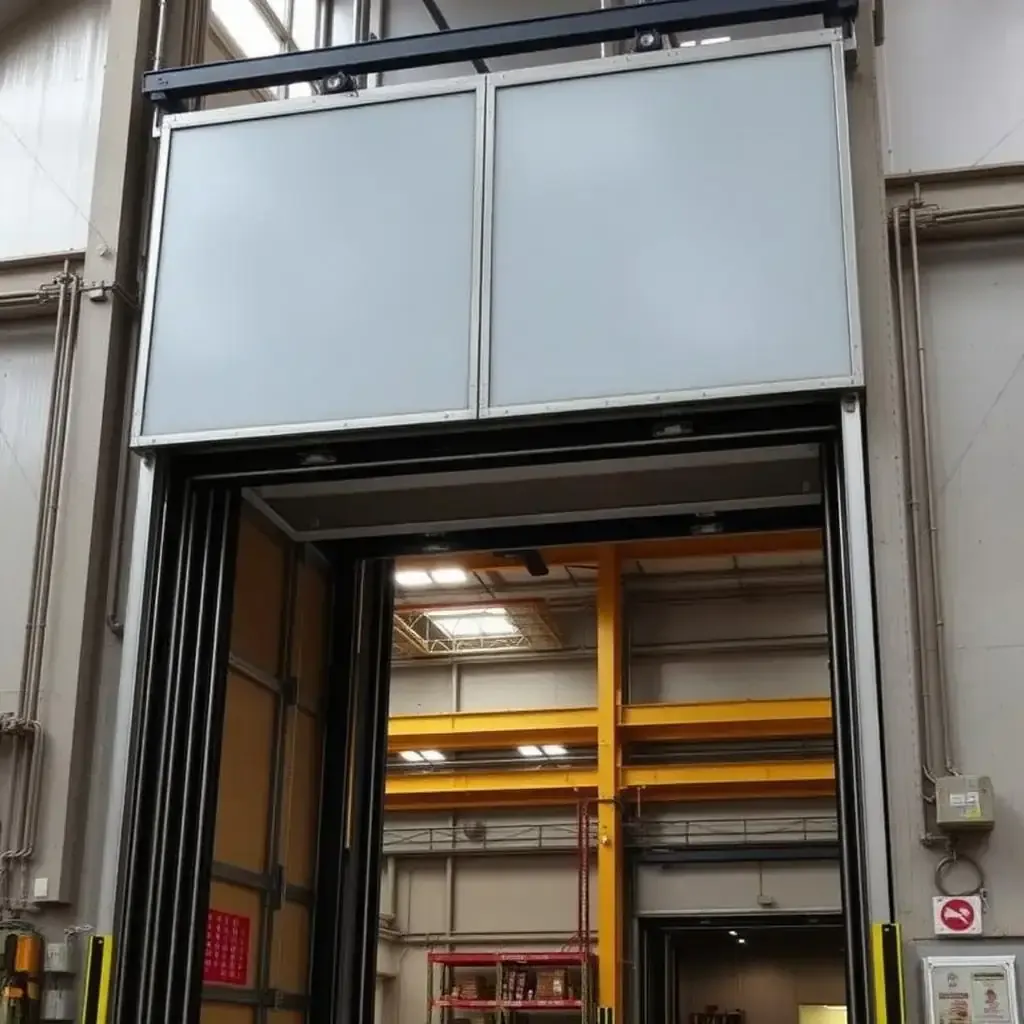

| Doors | Bi-parting 2B / vertical roller-shutter / manual swing |
| Cabin size | 1600×2000 up to 2500×3500 mm |
Engineering highlights.

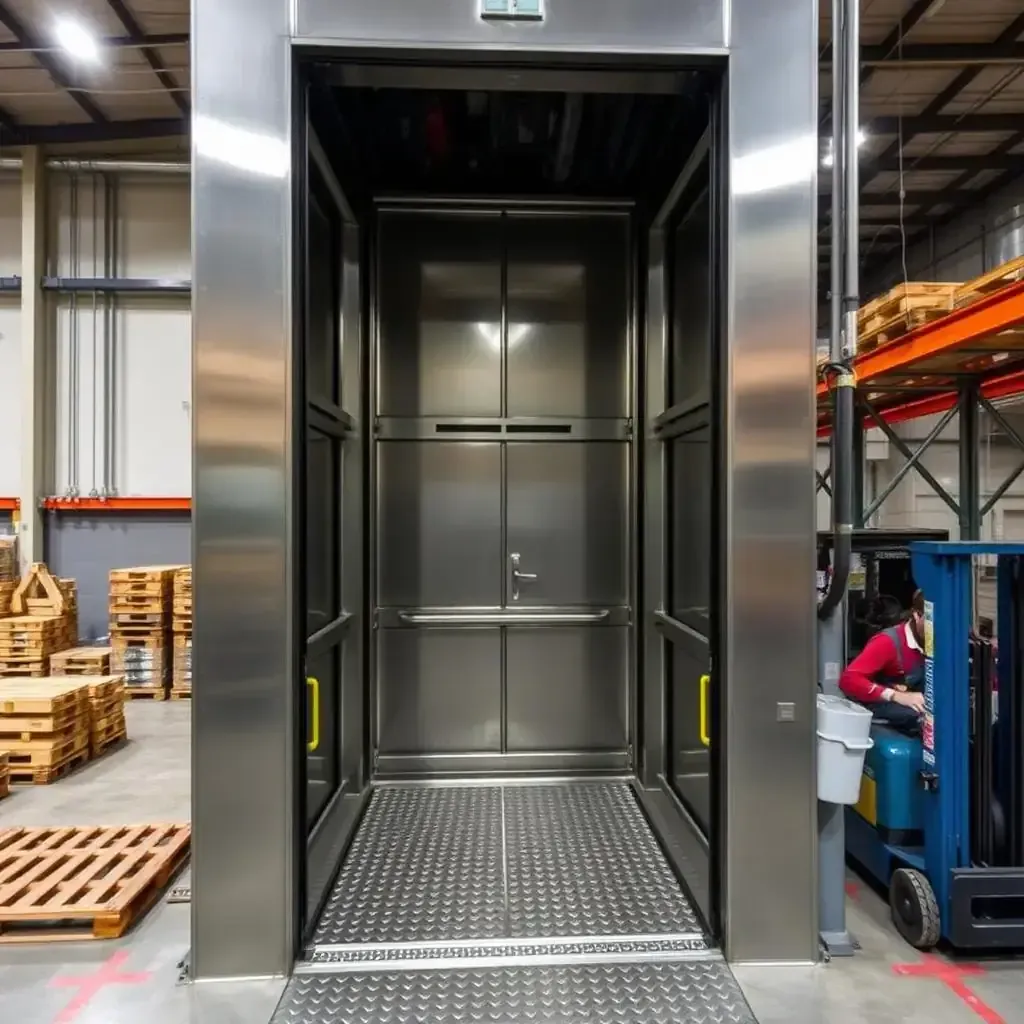

- Checker-plate steel or non-slip anti-static floor
- SS 304 bump rails and rubber corner guards
- Robust illuminated IP54 push-buttons
- Optional shaft heater for cold-storage applications
- Load-weighing with pre-torque and overload lockout
Safety by design — every layer.
- Progressive safety gear (both directions)
- Overspeed governor with mechanical & electrical trip
- Dual brake with independent monitoring
- Fire-rated shaft doors (E60/E120)
- PEC-compliant electrical isolation & earthing
Codes we design & test to.
- EN 81-20/50
- EN 81-31 (goods-only variant)
- ISO 8100-1
- PEC electrical code
See it in the field.
Freight Elevators: what engineers ask.
End-to-end lifecycle support.
Request a quotation for freight elevators.
Send us your building drawings and traffic profile — our engineering team will return a detailed specification and quotation within 48 hours.
