Product · LT-MRL
Machine Room-Less Elevators
Compact PMSM gearless · saves up to 8 m² per shaft
Engineered machine room-less elevators for Pakistan's demanding built environment.
Liftech Global machine-room-less (MRL) elevators integrate a low-profile PMSM gearless machine and Monarch NICE 3000+ controller directly inside the shaft head. Removing the overhead machine room releases up to 8 m² of usable floor area per shaft and lowers the overall building height by 2.5–3.0 m — a decisive advantage on tight urban plots.
MRL is the modern standard for residential and mid-rise commercial buildings up to 90 m travel and 1.75 m/s. The compact gearless machine also improves energy efficiency by ~40% versus a legacy geared MR configuration.
Where it is deployed.
Why engineers choose this platform.
Space saving
Frees up to 8 m² of rentable area per shaft.
Energy efficient
PMSM gearless: ~40% less energy than legacy geared MR.
Lower building height
Removes the machine room, cutting building height 2.5–3.0 m.
Simpler civils
No slab penetration, no MR cooling — faster construction.
Verified engineering data.
| Parameter | Value |
|---|---|
| Rated load | 450 – 1600 kg |
| Rated speed | 1.0 – 1.75 m/s |
| Travel / stops | Up to 90 m · up to 32 stops |
| Drive system | PMSM gearless MRL, closed-loop vector |
| Controller | Monarch NICE 3000+ inside shaft cabinet |
| Overhead | ≥ 3600 mm (1.0 m/s) to 4400 mm (1.75 m/s) |
| Pit | ≥ 1400 mm |
Engineering highlights.

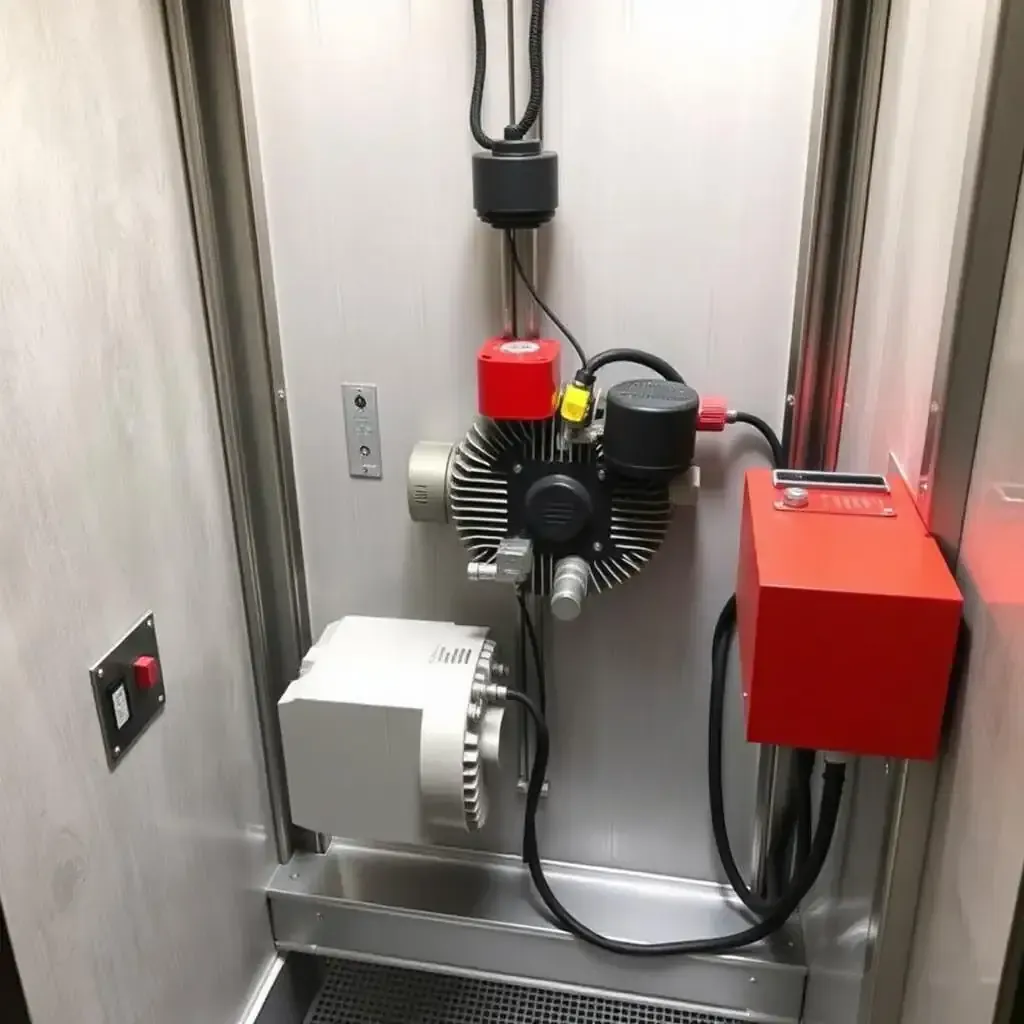

- Compact PMSM gearless machine mounted on car guide rails
- Shaft-mounted control cabinet with rescue access
- Regenerative drive option
- Group control up to 6 cars
Safety by design — every layer.
- Automatic Rescue Device (ARD)
- Unintended Car Movement (UCM) protection
- Overspeed governor + progressive safety gear
- In-shaft maintenance platform with light-curtain guarding
Codes we design & test to.
- EN 81-20/50
- EN 81-21 (existing buildings, optional)
- ISO 8100-1

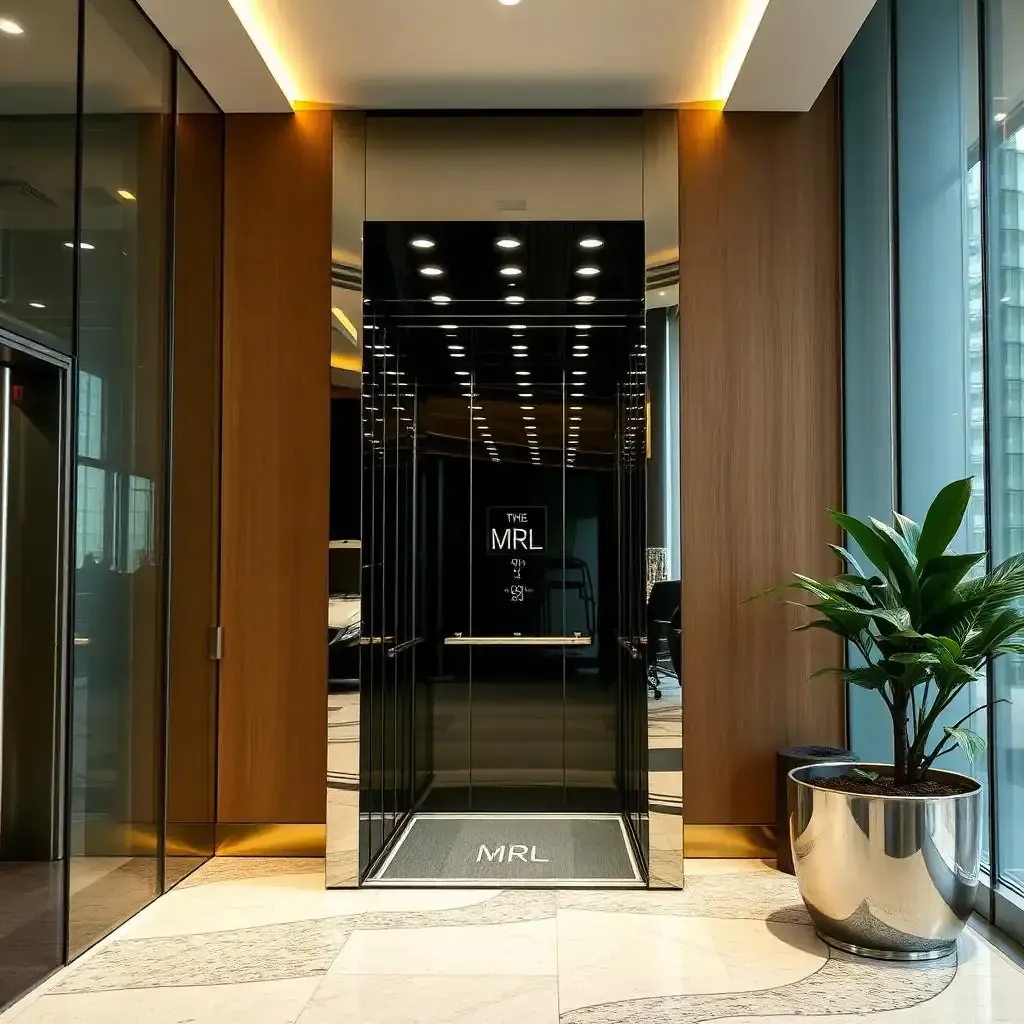

See it in the field.
Machine Room-Less Elevators: what engineers ask.
End-to-end lifecycle support.
Request a quotation for machine room-less elevators.
Send us your building drawings and traffic profile — our engineering team will return a detailed specification and quotation within 48 hours.
