What size hospital elevator is required for an ICU bed?

A minimum internal cabin of 1600×2500 mm with a 1200 mm clear door opening is required to accept an ICU bed with ventilator, IV pole and one attendant. For neuro / cardiac ICU stacks Liftech recommends 1800×2700 mm cabins.

What is hospital-priority operation?

Hospital priority is a key-operated call that cancels all registered landing calls and dispatches the car directly to the calling floor for exclusive use by medical staff. Liftech implements it per EN 81-70 §5.4.5 with independent service lockout.

How is ±3 mm re-levelling achieved?

The controller monitors car position with a shaft-encoder and, whenever the load changes (patient boarding), the drive re-torques the motor and the brake to correct floor level within ±3 mm — with the doors still open — using UCM-monitored circuits.

Design Your Lift Consultation

Product · LT-MED

Hospital Elevators

Stretcher-ready · ±3 mm re-levelling · antimicrobial finishes

01 · Overview

Engineered hospital elevators for Pakistan's demanding built environment.

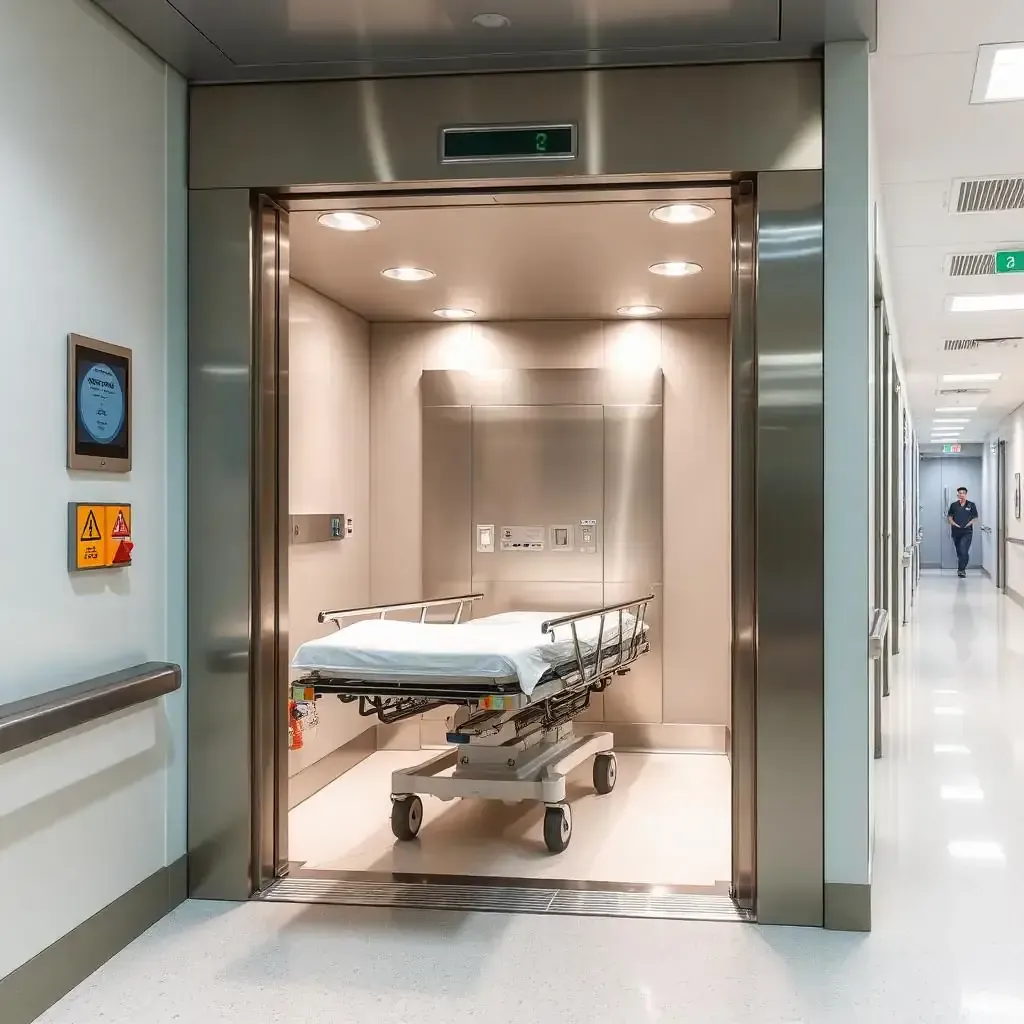

Liftech Global hospital bed lifts are engineered for tertiary-care hospitals, diagnostic centres, senior-living facilities and specialised OT/ICU stacks. Deep, narrow cabins (up to 1800×2700 mm) accept ICU beds with life-support trolleys, while ±3 mm re-levelling with doors open enables safe patient transfer.

Optional EN 81-72 firefighter operation and dual power sources with automatic ATS transfer keep the lift operational during power interruptions or emergencies. Antibacterial AISI 316 stainless steel and Corian® wall packages are validated to JIS Z 2801 and specified for infection-control zones.

02 · Applications

Where it is deployed.

Tertiary hospitals & medical citiesDiagnostic centres & OT stacksEmergency & trauma centresRehabilitation & senior-living facilitiesIsolation & OT clean-corridor lifts

03 · Benefits

Why engineers choose this platform.

Precision leveling

±3 mm re-levelling with doors open for safe stretcher transfer.

Hospital priority

Key-operated priority I/O overrides all landing calls in emergencies.

Antibacterial cabin

AISI 316 + Corian® pack passes JIS Z 2801 antibacterial test.

Continuous operation

Dual power + ATS transfer keeps the lift up during outages.

04 · Technical Specifications

Verified engineering data.

Parameter	Value
Rated load	1600 · 2000 · 2500 kg
Rated speed	1.0 · 1.6 m/s
Travel / stops	Up to 45 m · up to 20 stops
Drive system	PMSM gearless, closed-loop vector
Leveling accuracy	±3 mm (re-levelling with doors open)
Cabin sizes	1400×2400 · 1600×2500 · 1800×2700 mm
Door opening	1100 · 1200 · 1400 mm center-opening 2P
Controller	Monarch NICE 3000+ with hospital-priority I/O
