When is a hydraulic elevator the right choice?

Hydraulic is optimal for low-rise (< 18 m) heavy-load applications where slab structure is weak, overhead is tight, or the client wants to avoid a machine room on the roof. It is not recommended for speeds above 0.63 m/s or duty cycles above 60 starts/hour.

Does a hydraulic elevator need a machine room?

A pump-room is required but can be located up to 15 m from the shaft, and is typically a small enclosure (2×2 m) at the lowest served floor rather than an overhead room.

Design Your Lift Consultation

Product · LT-HYD

Hydraulic Elevators

Direct / indirect ram · low overhead · heavy load

01 · Overview

Engineered hydraulic elevators for Pakistan's demanding built environment.

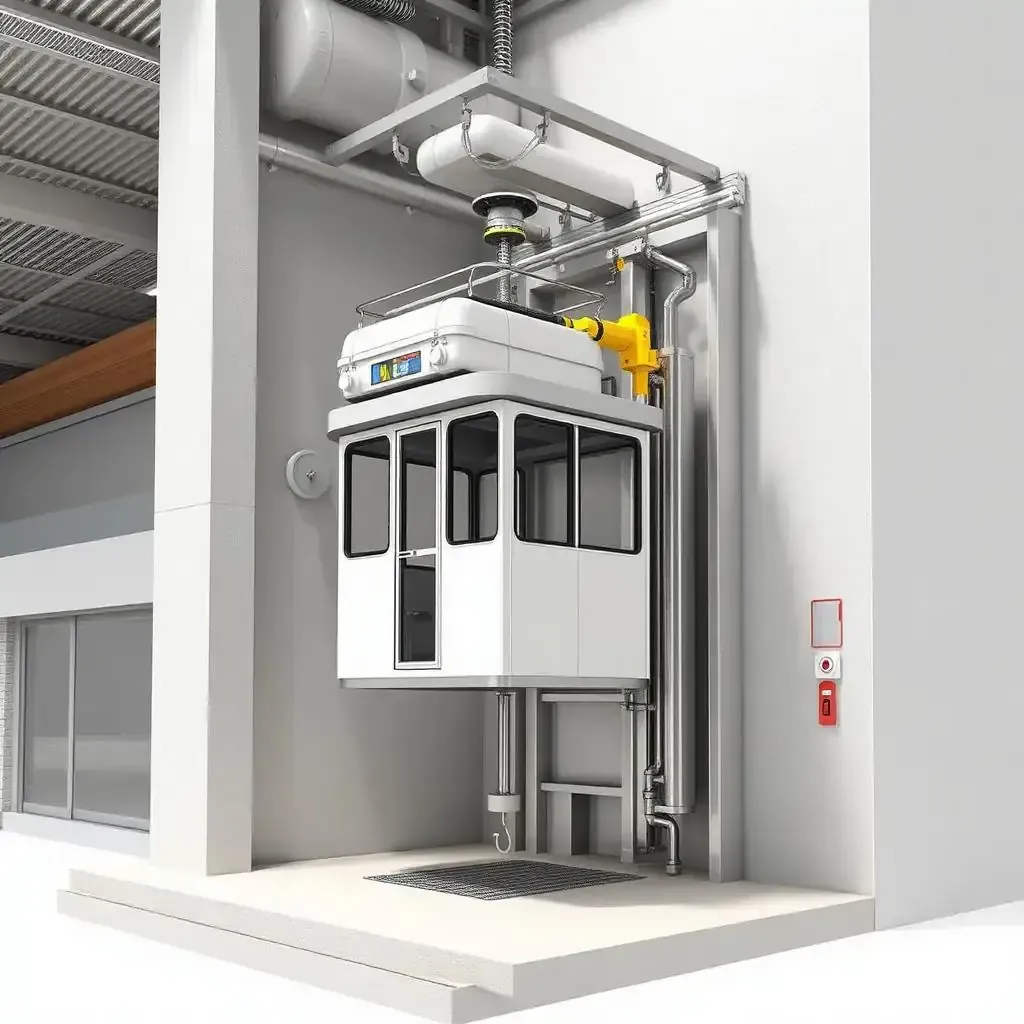

Liftech Global hydraulic elevators are the workhorse for low-rise heavy-load applications: workshops, showrooms, low-rise commercial buildings and back-of-house service lifts. A submerged hydraulic pump unit drives the car through a direct or indirect ram, delivering exceptional payload capacity at speeds up to 0.63 m/s.

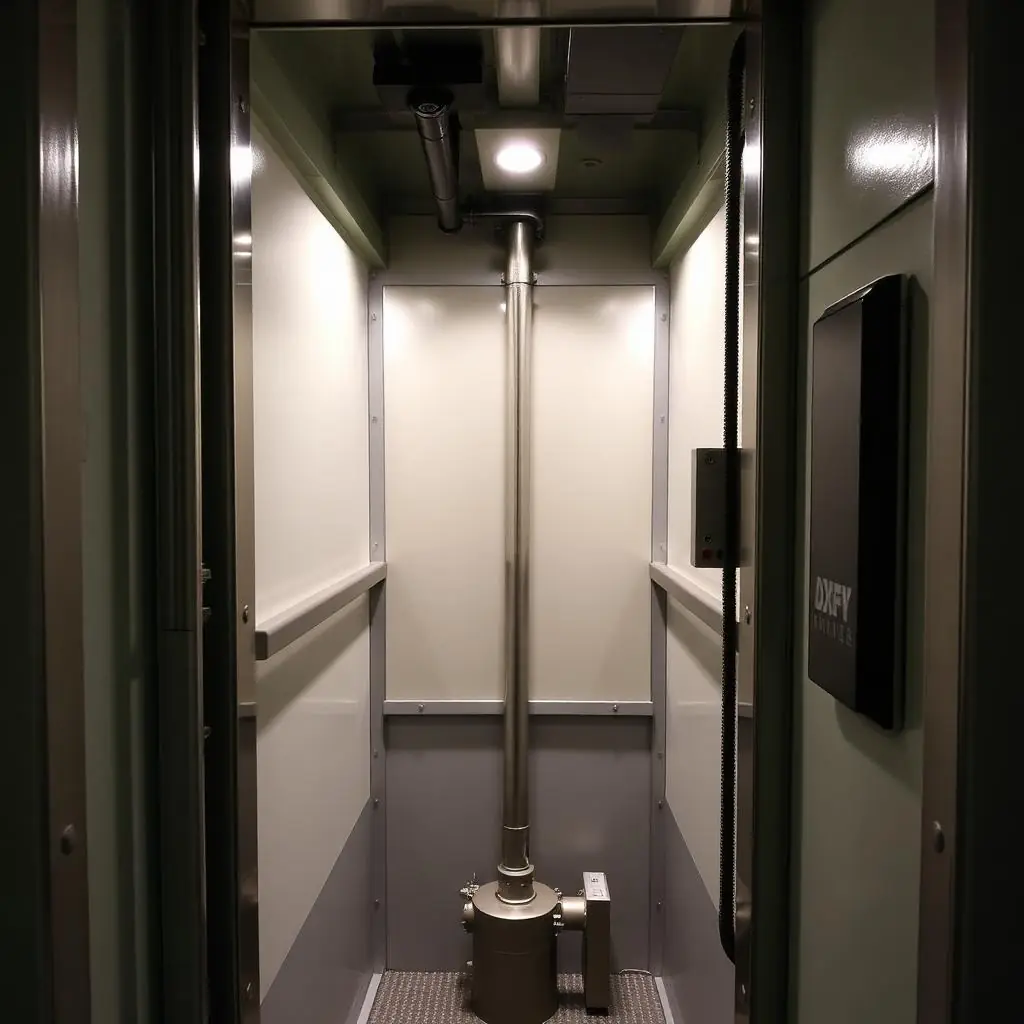

Because the load is carried by the ram rather than by the building structure, hydraulic lifts allow very low overhead (2400 mm) and eliminate the need for a machine room at the top. The pump unit is housed in a compact enclosure adjacent to the shaft, up to 15 m away.

02 · Applications

Where it is deployed.

Low-rise commercial buildingsAutomotive workshops & showroomsRetail back-of-houseRetrofits with limited overheadHeavy goods lifts up to 5000 kg

03 · Benefits

Why engineers choose this platform.

Massive payloads

Rated load up to 5000 kg with direct-acting ram.

Low overhead

Overhead as low as 2400 mm — perfect for retrofits.

Loads on ram, not structure

Building structure carries no lift loads — ideal for weak slabs.

Flexible pump location

Pump unit can be installed up to 15 m away from shaft.

04 · Technical Specifications

Verified engineering data.

Parameter	Value
Rated load	630 – 5000 kg
Rated speed	0.25 · 0.4 · 0.63 m/s
Travel / stops	Up to 18 m · up to 6 stops
Ram configuration	Direct or indirect (2:1) telescopic optional
Pump unit	GMV / Blain submerged pump, 7.5–37 kW
Controller	Monarch NICE 3000-HD hydraulic profile
Overhead	≥ 2400 mm
